Name: 156lb ASME Double-Jacketed Solvent Tank or Collection Vessel | V1 | Unassembled
SKU: 1073791

Our high-quality stainless steel tanks work equally well as solvent tanks or collection vessels for your closed loop system. Pairs perfectly with our smaller Titan systems. Double jacketing allows for more efficient heating or cooling depending on the application.

Features:

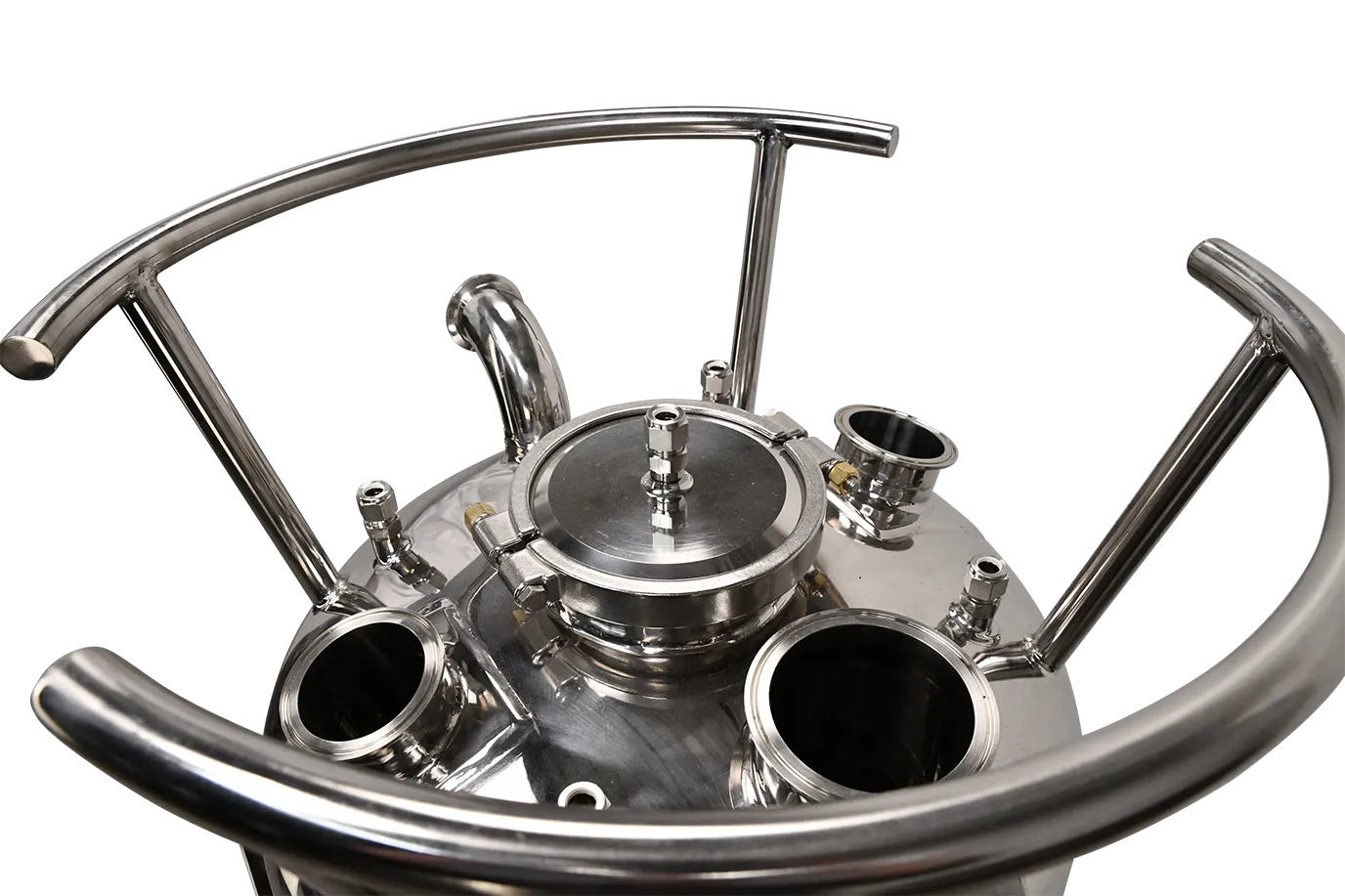

1/2" compression ports
6" center tri-clamp
4" secondary tri-clamp

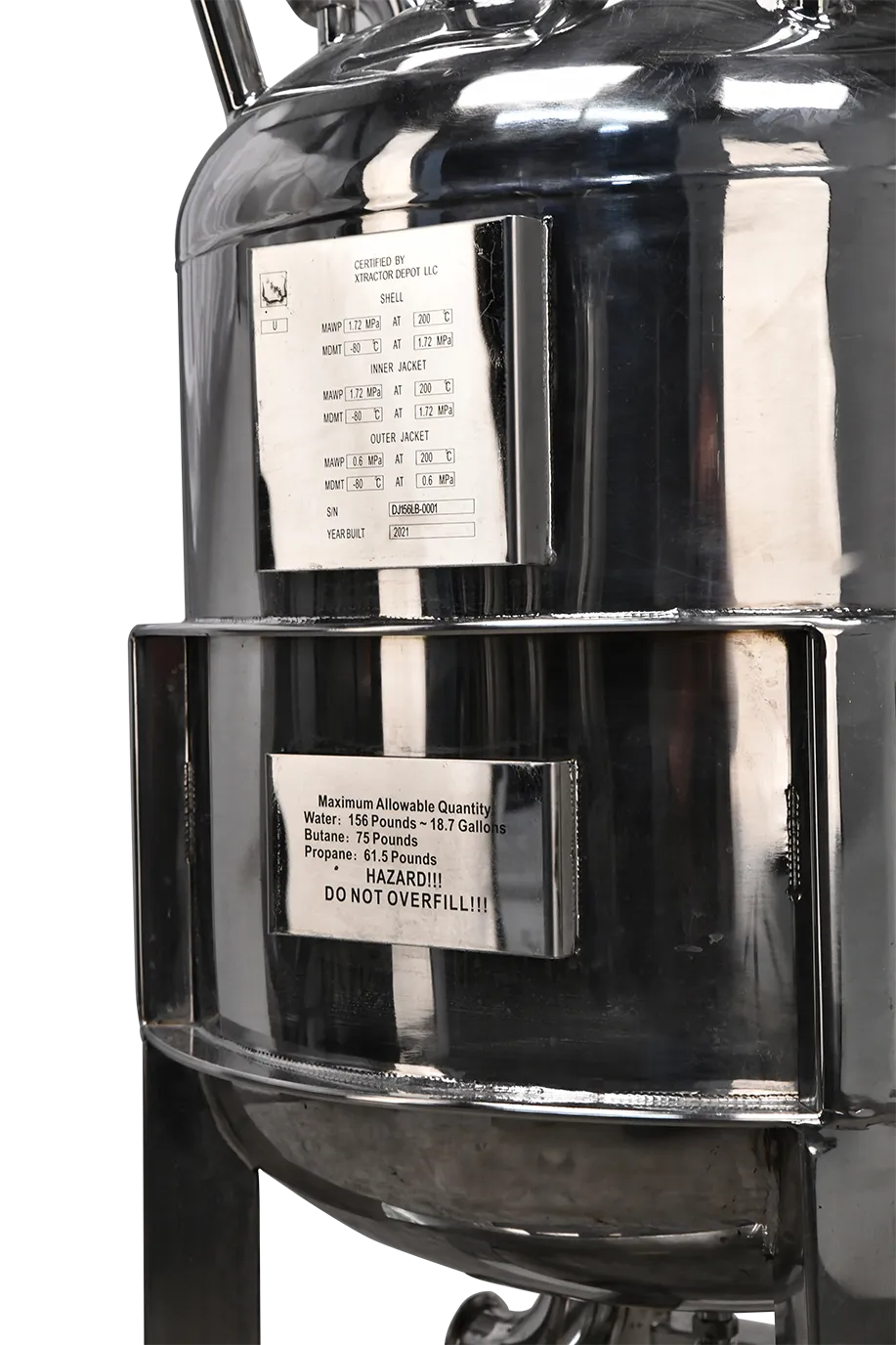

ASME Certified
Easily moveable and stable
Shell rated for 250 PSI
Inner jacket rated for 120 PSI
Outer jacket intended for vacuum

Specifications:

Tank:
- Volume: 4318.34 in cu
- Water Capacity: 18.69 gallons
- Water (100% fill): 155.97 lbs
- Butane (80% fill): 74.99 lbs
- 70/30 (80%) fill: 70.95 lbs
- Propane (80% fill): 61.53 lbs
Jacket:
- Volume: 1641.26 cu in
- Water Capacity: 7.11 gallons
- Water (100% fill): 59.69 lbs

Additional:

Ships via freight which will be charged separately.
Shipping team will reach out via phone.

156lb ASME Double-Jacketed Solvent Tank or Collection Vessel | V1 | Unassembled
